HIP-226C DC Compressor Nebulizer

Part parameters

Packaging Details:
Delivery Time:
Description: Portable size nebulizer HIP-226C,with built-in NiMH battery, low noise, automatic shut-down function with low battery voltage

Detailed introduction:

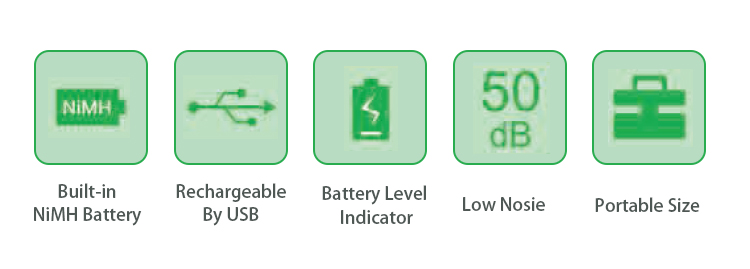

Portable size nebulizer HIP-226C, recharged by USB cable, is a high-end DC compressor nebulizer, with built-in NiMH battery, low noise, automatic shut-down function with low battery voltage





TECHNICAL FEATURES

Extreme Pressure : ≥1 bar
- Free Flow: approx. 4.5 L/min
- Nebulizing Rate: approx. 0.2 ml/min
- MMAD: approx. 4.0μm
- FPF: approx. 80%
- Noise Level: approx. 50 dB
- Max capacity of nebulizer kit: 10 mL
- Operating mode: 30 minutes on,30 minutes off
- Automatically shutdown when battery level is too low
- Pump life: > 300 hours
- Device Net Weight: 320 g
- Device Size: 130 mmx90 mmx45.6 mm

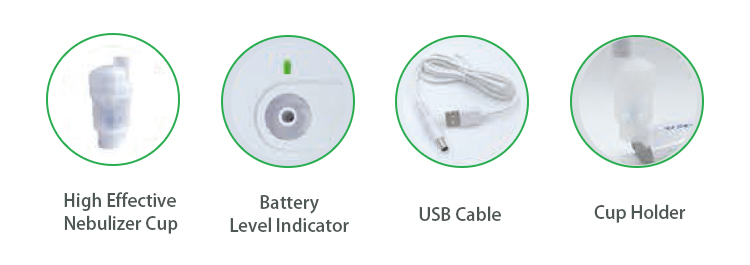

Accessories: high effective nebulizer cup, child mask, inhalation
mouthpiece, inhalation tube, air filter, USB cable, adapter(optional)




Built-in Battory SPECIFICATION:

- Type designation: NiMH battery
- Nominal voltage: 4.8 V
- Capacily: 2000 mAh
- Battery life: 500 cycles


AC/DC Adapter SPECIFICATION:

- INPUT: 100-240V 50-60Hz
- OUTPUT: DC 6V, 2A



Package content:

Box size ( mm ) Carton size ( mm ) Pcs/Ctn Kgs/Ctn
190x151x97 408x400x322 16 9/8.3

Interested in this product, please leave us a message
